3-Bar MAP Sensor



Description

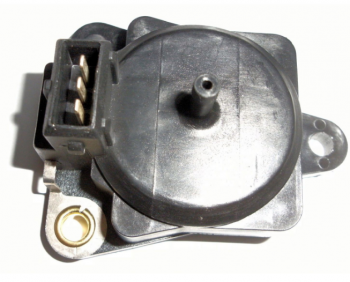

  • This is a Cosworth style 3-Bar MAP sensor, used for measuring manifold pressure. Capable of reading up to 2-bar (30psi) of boost.
  • It uses a 3mm barb for the vacuum line fitting, and a 3-pin mini timer connector for electrical connection.
  • The pin-out is:
  • VREF (5V)
    Ground (Middle Pin)
    Signal Out (pin closest to the brass eyelet)
  • The typical HRT calibration you would use in the ME221/ME360 is shown on the images:



How to Order:

FOR INFORMATION PURPOSES ONLY.

This product can only be purchased as part of an ECU package.
