Ford 1.6L EcoBoost Belt Driven Dry Sump System

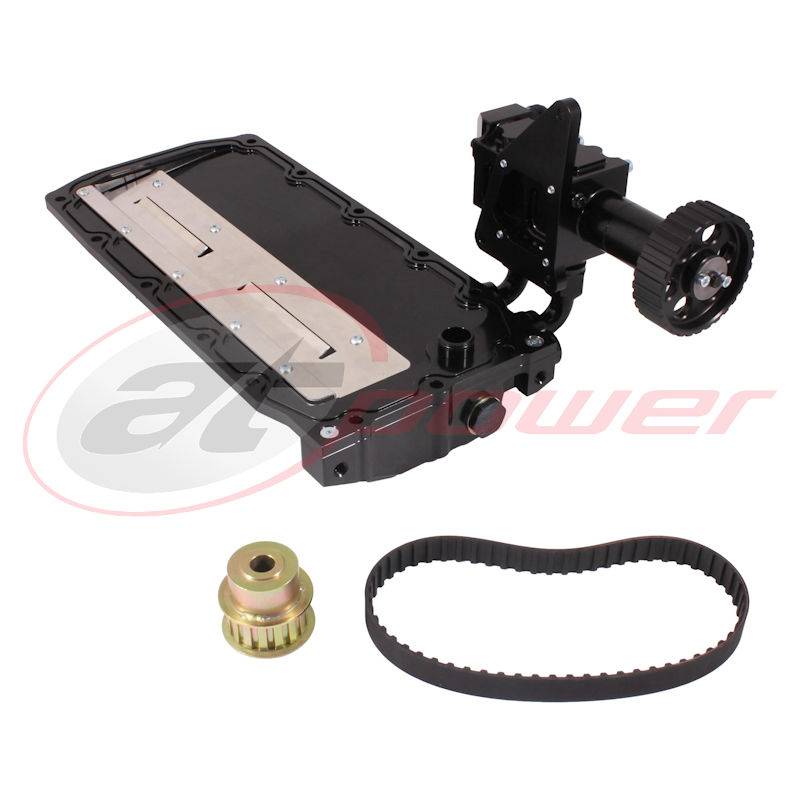

AT Power's unique Ford 1.6L EcoBoost Belt Driven lightweight precision machined billet aluminium Dry Sump Systems are designed and tested to prevent engine oil starvation (surge) due to G-force levels experienced during race conditions, lowering engine oil temperatures, and freeing up more of a race engines potential horsepower.

The low-profile Sump Pan accommodates fitment into those vehicles with cross members such as Ford Escorts, also being ideal for Kit Cars such as the Westfield and Caterham models as well as mid mounted engine installations.

AT Power's Ford 1.6L EcoBoost belt driven Dry Sump Systems are supplied with a CNC machined billet aluminium high efficiency 2-Stage Oil Pump, offering outstanding oil displacements from the two x 11.9 L/Min @ 1000 RPM twin Scavenge Stages, being suitable for engine speeds up to 9000 RPM, removing the aeriated oil from the Sump Pan and returning it back to a remote oil tank, increasing the engines oil supply capacity.

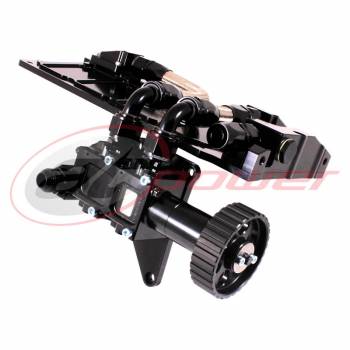

The Oil Pump with its extended nose and mounting plate is positioned on to the inlet side of the engine block in the existing Air Con location, being driven via the Crankshaft Pulley and HTD Drive Belt supplied. This system retains Fords original (OEM) high efficiency variable displacement Oil Pressure Pump which is directly fed from a remote Oil Tank. The Oil Pumps supply and return hose connections are JIC-12 and we recommend a minimum of a 5-litre Oil Tank and either an air type Oil Cooler with a minimum 18 rows or a Laminova type Oil Cooler.

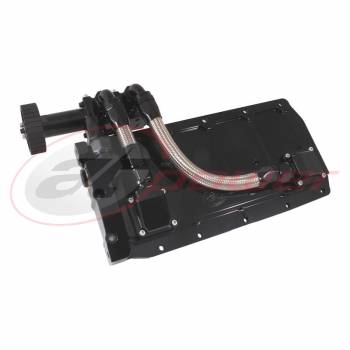

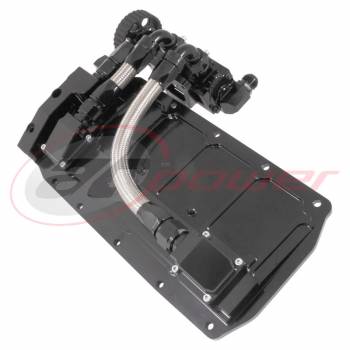

The Sump Pan is supplied fully assembled with integrated windage tray for maximum oil circulation and flow, with Aeroquip hose connections between the low profile scavenge turrets and the Oil Pump. With the oil being drawn (scavenged) directly from the low-profile Oil Pan, engine crankcase pressures are reduced minimising the oil drag on the crankshaft and lowering Piston resistance which in turn improves the engines horsepower.

To complete your installation, we also offer Dry Sump ancillary parts including Remote Oil Tanks, Oil Lines, Oil Fittings & Oil coolers (Follow the Informational Downloads link below for more information).



PLEASE NOTE!

Pump displacements stated are for guidance only as pump efficiencies can be affected by multiple external factors.

Available in a choice of 18 different anodising colours. Anodising-Colour-Swatch

To complete your installation, we also offer Dry Sump ancillary parts including Remote Oil Tanks, Oil Lines, Oil Fittings & Oil coolers (Follow the Informational Downloads link below for more information).



Product Informational Downloads:

PDF Package Drawing Download

System Installation Guide

Dry Sump Ancillary Parts



If you require assistance, please feel free to call us and speak with a member of our sales team.



WARNING!!

This is a motorsports product and should only ever be installed by a professional motorsport company.

Purchasing of this product is ONLY! available to trade customers or registered companies.

Validation of a company's registration status will be required.



Price On Application.
